Stop the Shudder: How a Pro Flywheel Inspection Prevents Costly Clutch Failures

A heavy-duty clutch is designed to withstand harsh use; however, its reliability depends on the flywheel with which it is paired. Tiny distortions on a flywheel’s friction surface build up each time a tractor-trailer starts under load in Atlanta traffic or crawls along I-75 during summer roadwork. If left uncorrected, these flaws can cause driveline vibrations, heat spots, faster wear on the pressure plate, and eventually, an unexpected clutch replacement. This article provides a comprehensive review of why regular flywheel inspection and resurfacing are essential for maintaining powertrain durability, minimizing downtime, and safeguarding fleet budgets.

The Mechanical Function of the Heavy-Duty Flywheel

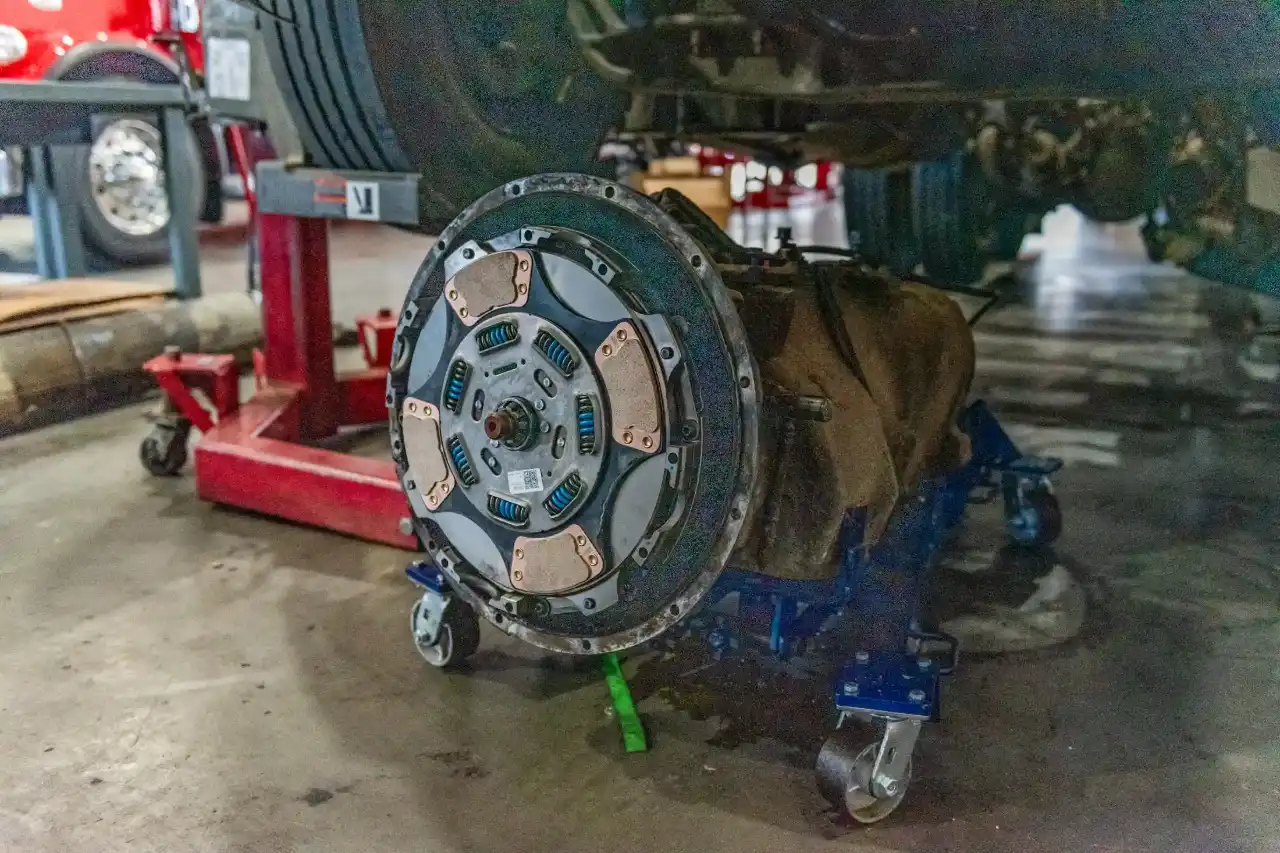

The flywheel is a heavy steel disc secured to the crankshaft flange. Its dual purpose is to:

1. Smooth torsional vibration is achieved by storing rotational energy between combustion impulses, thereby reducing crankshaft whip.
2. Provide a friction surface for the clutch disc and pressure plate, converting torque from the engine into controlled power transfer to the transmission.

Unlike automotive flywheels, Class 8 units usually weigh over 100 lb (45 kg) and are equipped with replaceable ring gears to connect with the starter pinion. Because these parts bear heavy loads, any deviation from the proper flatness, parallelism, or runout can quickly affect the entire driveline.

Symptoms Requiring Immediate Evaluation

• Vibration in the seat or pedals during take-off or when down-shifting on grades.
• Audible clang or growl from the bellhousing area when idling.
• Burnt clutch odour when coupling a loaded trailer.
• Starter pinion grinding against the ring gear during cranking
• Engine speed increases without a corresponding increase in vehicle acceleration.

Any of these indicators justifies scheduling a comprehensive flywheel and clutch evaluation at the next service interval—or sooner if revenue loads are at stake.

Professional Flywheel Inspection Procedure

1. Initial Visual Examination

   • Remove the bottom bellhousing cover and clean it with brake solvent.
   • Illuminate the friction surface and ring gear, checking for any discoloration, cracks, or oil residue.
2. Dial-Indicator Runout Measurement

   • Attach a magnetic base to the transmission input housing.
   • Rotate the flywheel a full 360 degrees; readings greater than 0.005 in (0.13 mm) require corrective action.
3. Thickness Verification

   • Use a micrometre to record multiple points 30 degrees apart.
   • Compare to OEM thickness tolerance (commonly ≥0.925 in / 23.5 mm for SAE #2 housings).
4. Hardness and Crack Detection

   • Perform surface hardness assessments with a portable Rockwell tester.
   • Apply the fluorescent magnetic-particle solution; UV light reveals subsurface fractures invisible to the naked eye.
5. Ring Gear Assessment

   • Inspect each tooth for hooking or pitting.
   • Measure backlash on the starter pinion following the manufacturer's specifications.

Recording these metrics in a digital maintenance log enables trend analysis across the fleet and supports warranty discussions when failures occur prematurely.

Criteria for Flywheel Resurfacing vs. Replacement

Resurface When

• Radial cracks do not reach the mounting bolt holes.
• Post-grind thickness stays above the minimum specification.
• Ring-gear teeth are either serviceable or can be replaced economically.

Replace When

• Cracks connect, indicating structural fatigue.
• Cumulative material removal causes the thickness to fall below the spec.
• Ring-gear spalling or missing teeth can cause starter damage.

Flywheel resurfacing is done on a specialized flywheel grinder using a non-directional finish (Ra 40–60 µin) to ensure even clutch bedding. A step-cut is made where single-plate pull-type clutches need an offset between the friction face and the pressure-plate mounting land. Precision is crucial: deviations over ±0.002 across the contact zone can cut clutch service life in half.

Integrating Flywheel Care into Preventive-Maintenance Strategy

Heavy-duty operations often use engine hours to benchmark lubricant changes; scheduling flywheel checks every third oil service (~50,000 mi / 80,000 km for line-haul tractors) has proven to be cost-effective. During this interval, technicians should:

• Record flywheel runout and surface condition.
• Check the clutch-brake clearance; adjust the linkage or reset the self-adjusting mechanisms.
• Check crankshaft end-play to identify thrust-bearing wear that could cause axial movement and lead to face irregularities.

A detailed schedule maintains E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) for compliance audits and aids insurance risk evaluations.

Frequently Overlooked Best Practices

• Torque Sequencing: Always tighten final-torque pressure-plate bolts in a star pattern to prevent induced warping.
• Pilot Bearing Renewal: A seized pilot bearing allows input-shaft wobble that mimics flywheel vibration symptoms.
• Crankshaft Flange Inspection: Surface corrosion or fretting requires lapping to achieve proper alignment.
• Cooling System Maintenance: Inadequate engine cooling can raise clutch-hub temperatures; ensure the radiator and charge-air cooler are clean to prevent thermal cycling, which speeds up heat checking.
• Oil-Seal Replacement: The rear main seal weeps contaminants onto the friction face, leading to glazing. Replace seals along with flywheel service to prevent future labour.

Conclusion—Protect the Driveline, Protect the Bottom Line

Precision flywheel inspection and, when necessary, flywheel resurfacing are essential parts of a strong preventive-maintenance programme. When you consider the total costs of clutch assemblies, service labour, tow bills, and lost hauling opportunities, proactive flywheel maintenance proves to be a sensible investment.
